DJI AL1 Spotlight

DJI AL1 Spotlight

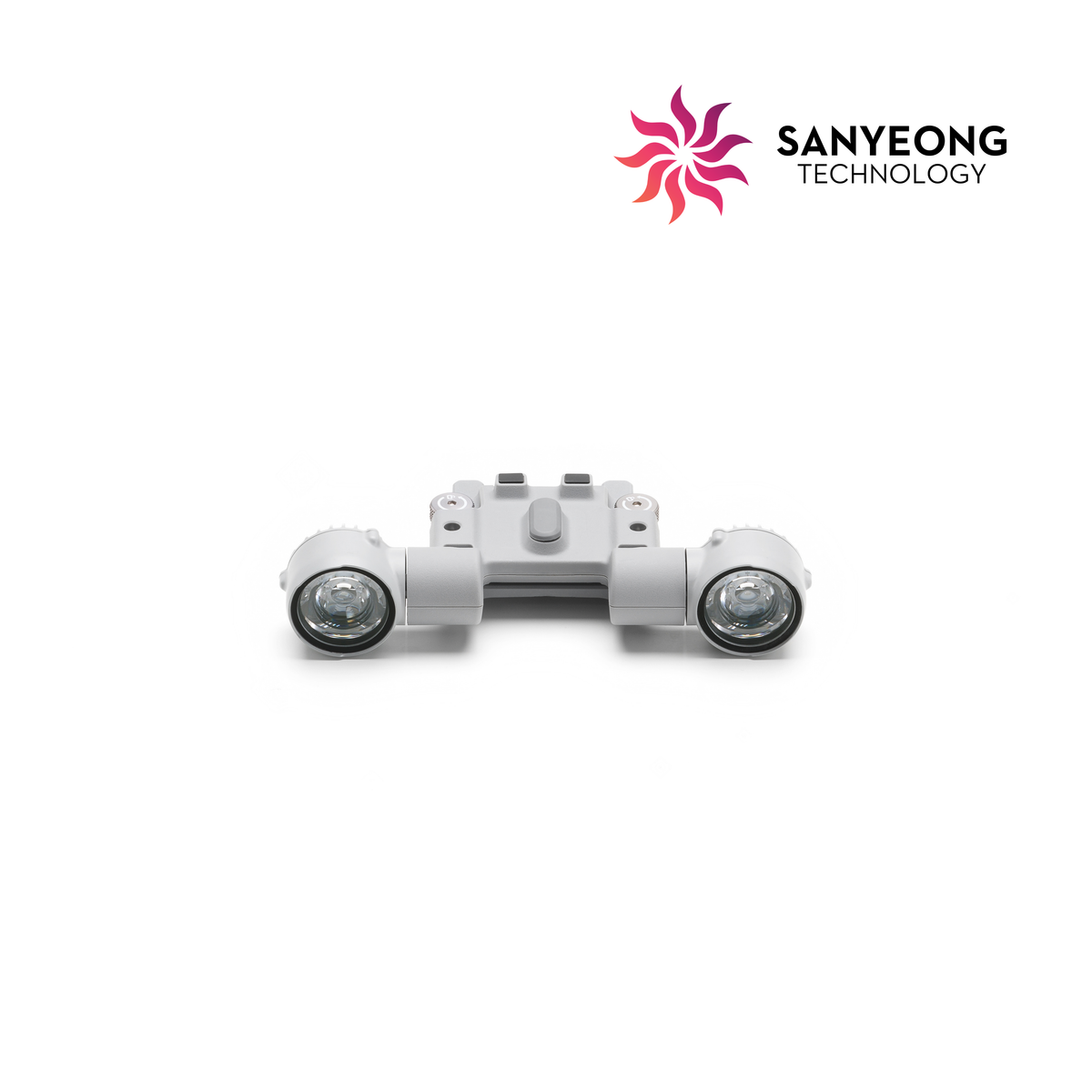

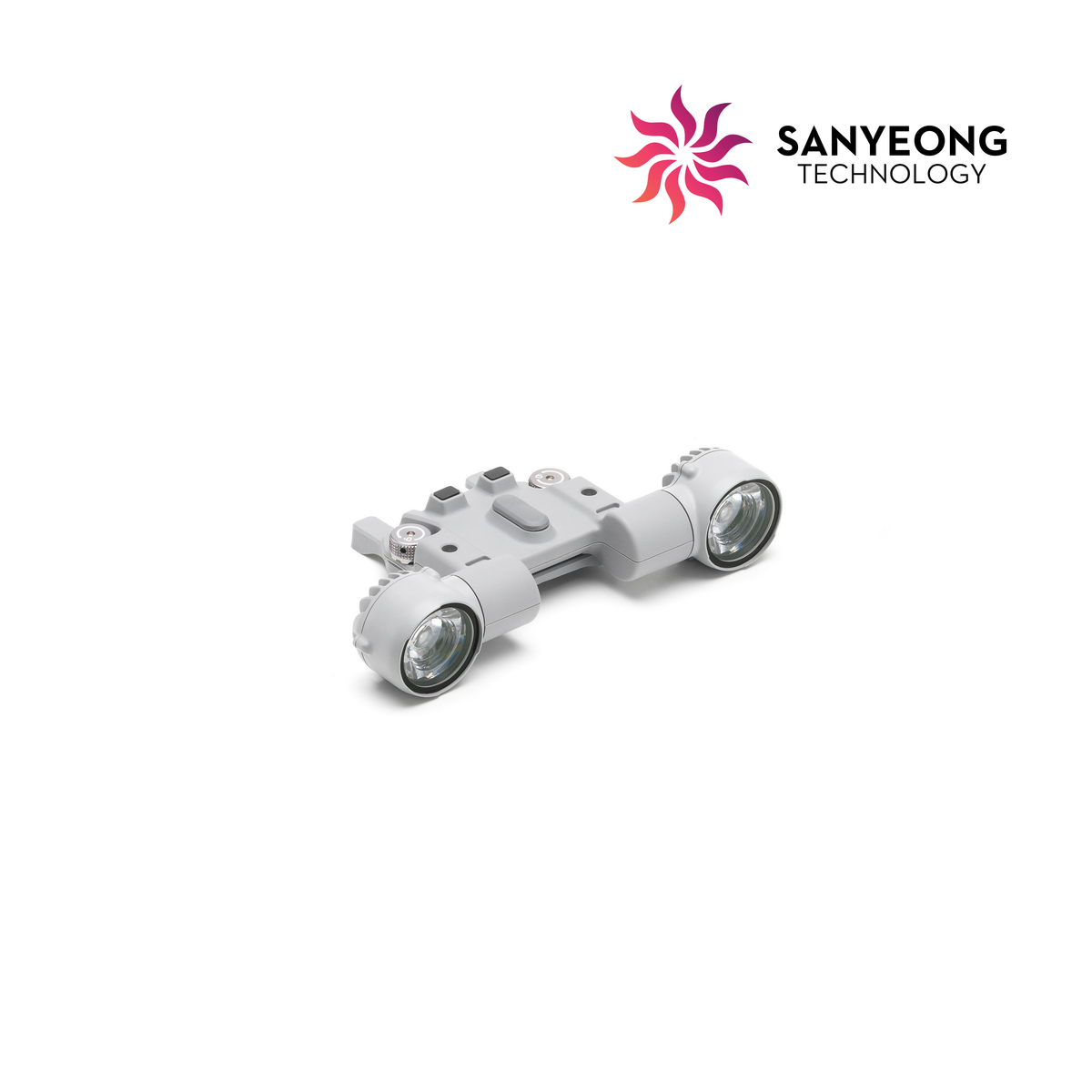

The DJI AL1 Spotlight is a high-performance illumination accessory designed for the DJI Matrice 4 Series and DJI Matrice 4D Series. It provides powerful long-range lighting with always-on and strobe modes, making it ideal for public safety, emergency response, security patrols, search and rescue, and night-time inspections. The spotlight can be used independently or together with the DJI AS1 Speaker for enhanced mission capability.

Key Features

• High-performance LED spotlight
• Always-on and strobe lighting modes
• Wide FOV lighting mode
• Supports gimbal follow mode
• Effective illumination up to 100 metres
• Compatible with DJI AS1 Speaker for combined operation
• Quick-release mounting design
• Compatible with DJI Pilot 2 and DJI FlightHub 2 workflows

Technical Highlights

• Max Power: 32 W
• Illuminance: 4.3 ± 0.2 lux @ 100 m
• Effective Illumination Angle: 23°
• Effective Illumination Area: Up to 2,200 m² @ 100 m (Wide FOV Mode)
• Operating Modes: Always-on, Strobe
• Gimbal Mechanical Range: -140° to +50°
• Gimbal Controllable Range: -90° to +35°
• Weight: Approximately 91 g (excluding bracket)
• Operating Temperature: -20°C to 50°C
• Ingress Protection Rating: IP55
• Compatibility: DJI Matrice 4 Series & DJI Matrice 4D Series
